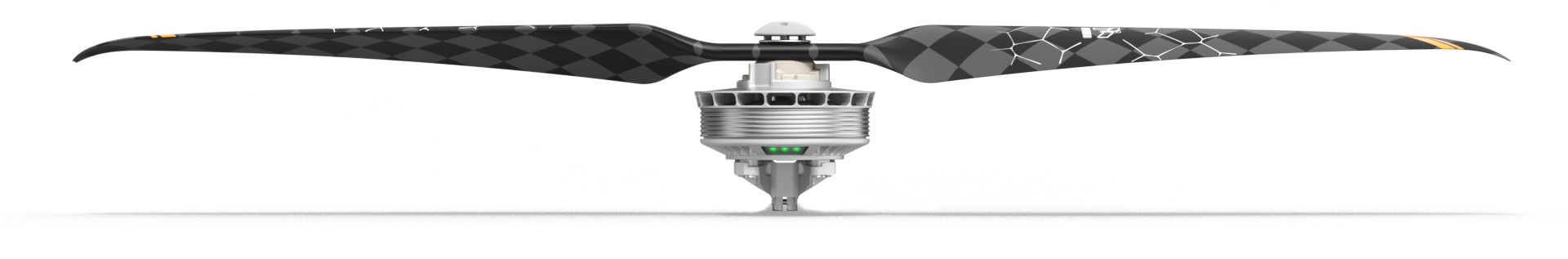

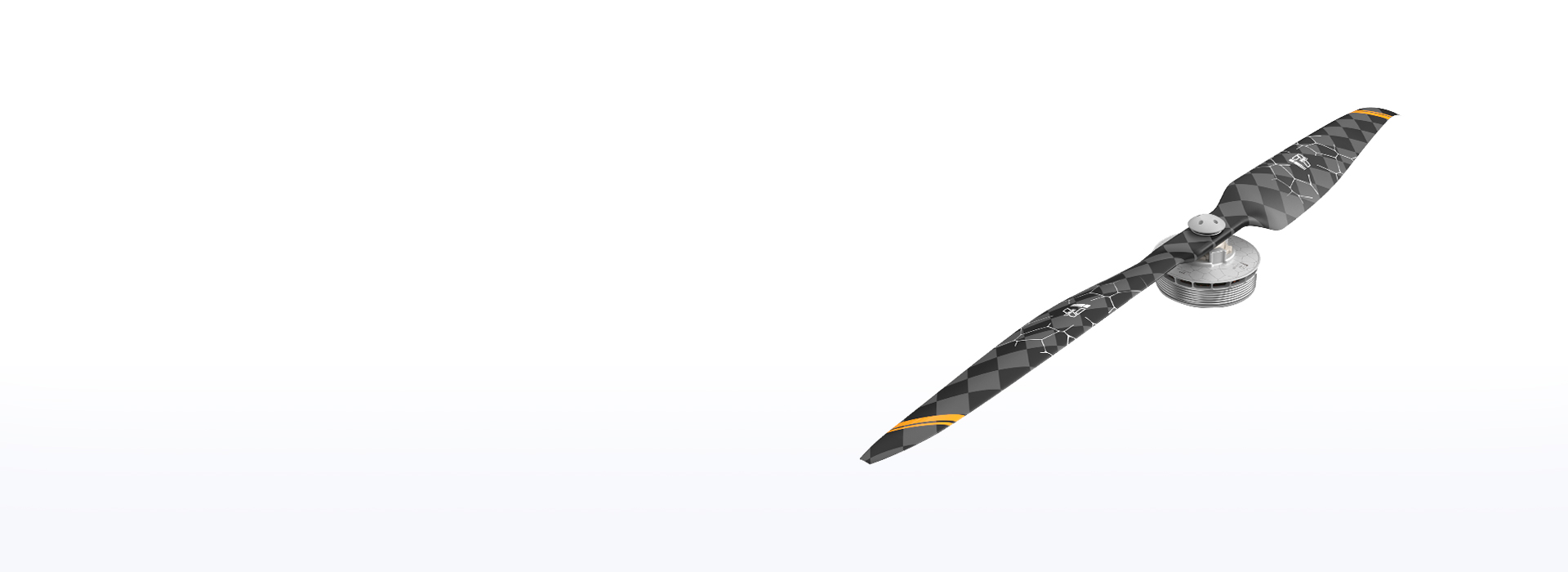

IPET I7
Integrated I7 motor 14S FOC 50A ESC and matched I30 propeller system for 10–14 kg quadcopter UAVs requiring long endurance efficient hover performance lower acoustic impact and streamlined platform integration
Engineering Fit Check

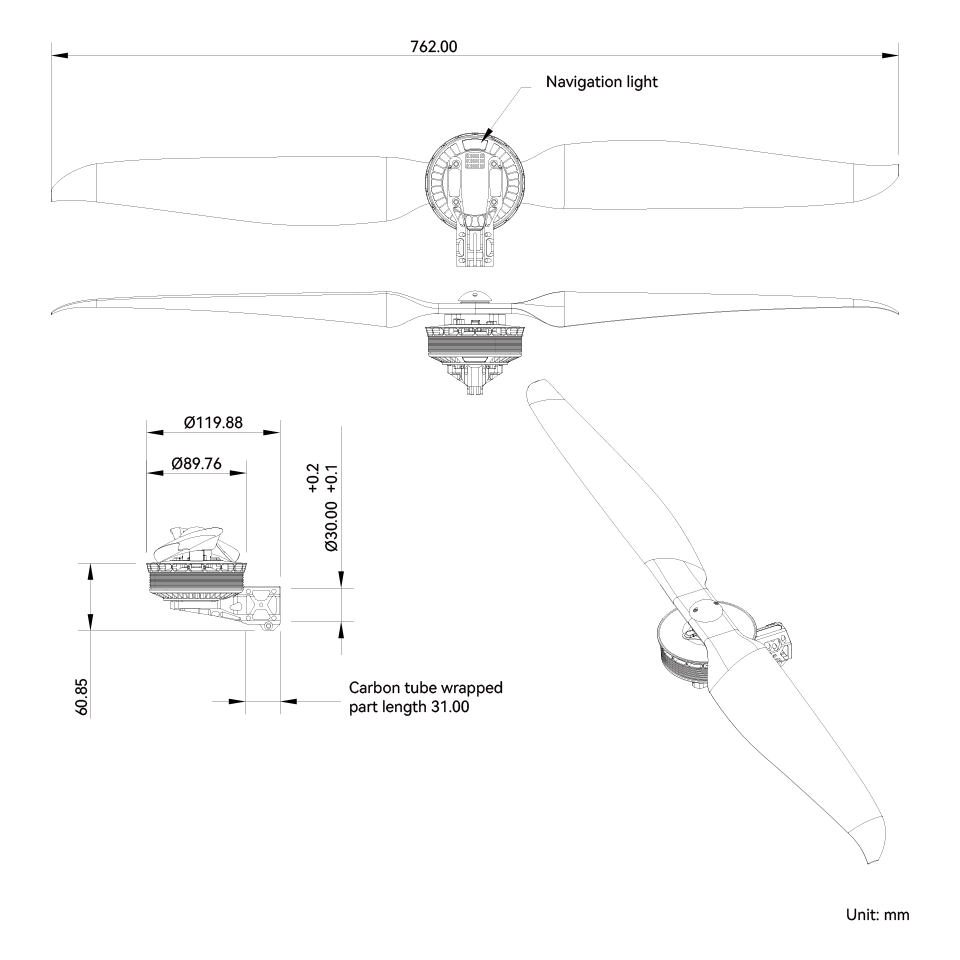

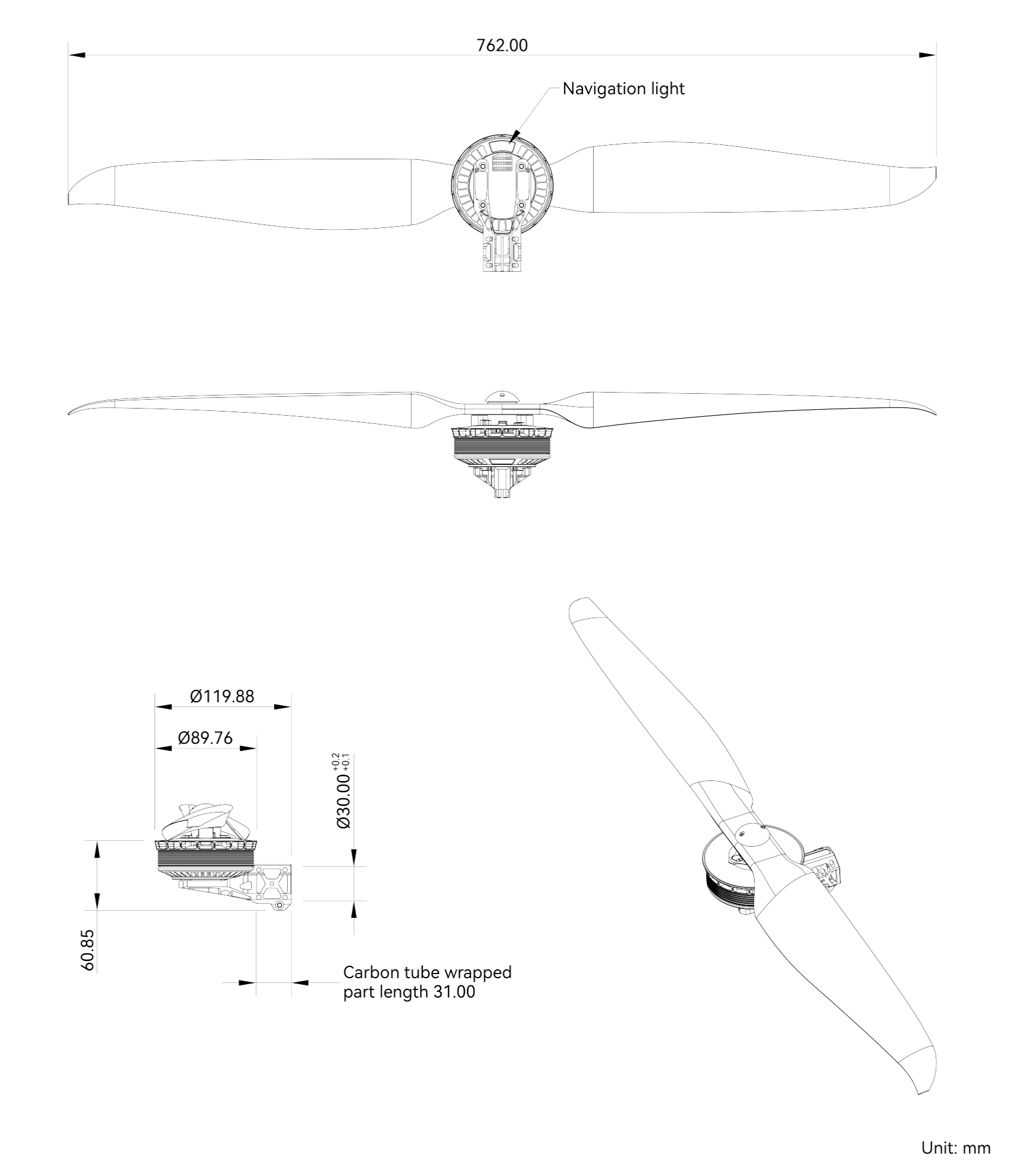

Use these core parameters for initial airframe compatibility review Final sizing should also consider altitude ambient temperature payload distribution mission duty cycle propeller clearance and the thrust reserve required by the flight control strategy
Integrated by Design Validated as a System
Motor ESC and matched propeller are engineered as one propulsion architecture to reduce integration work improve system consistency and provide a validated starting point for UAV platform development
Motor and ESC Integration
A compact integrated architecture reduces external wiring connector count and installation complexity while supporting more consistent electrical control and thermal behavior
Matched Propeller Setup
Propeller sizing is selected around the motor and ESC operating range to balance thrust efficiency current draw and thermal load at system level
Faster Platform Integration
A defined propulsion configuration reduces component sourcing compatibility testing and repeated tuning during prototype development
System Level Performance Data
Thrust efficiency current RPM and temperature are evaluated as a complete propulsion system to support airframe selection and validation
Engineered for Two Hour Endurance and Lower Acoustic Impact
Designed for 10–14 kg quadcopter UAVs that need verified long duration efficiency rapid deployment lower acoustic disturbance and dependable performance across frequent mission cycles

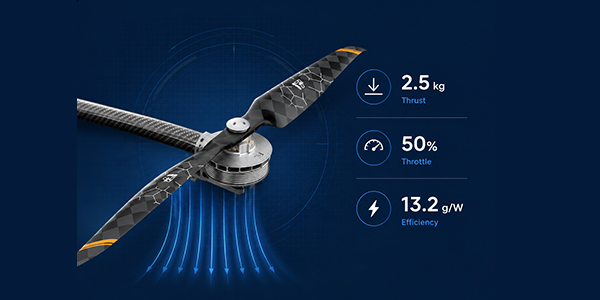

Two Hour Class Endurance from High Efficiency

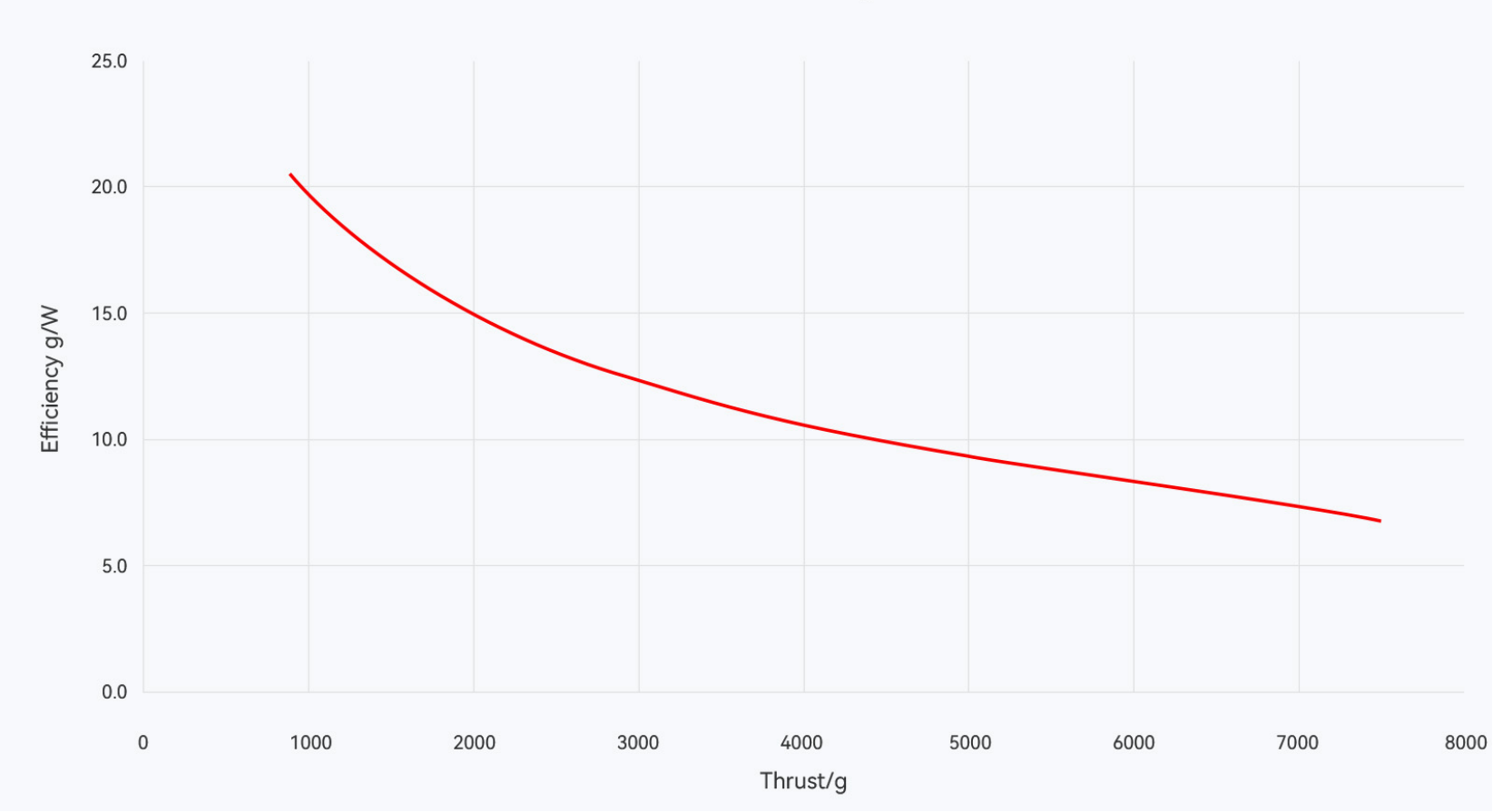

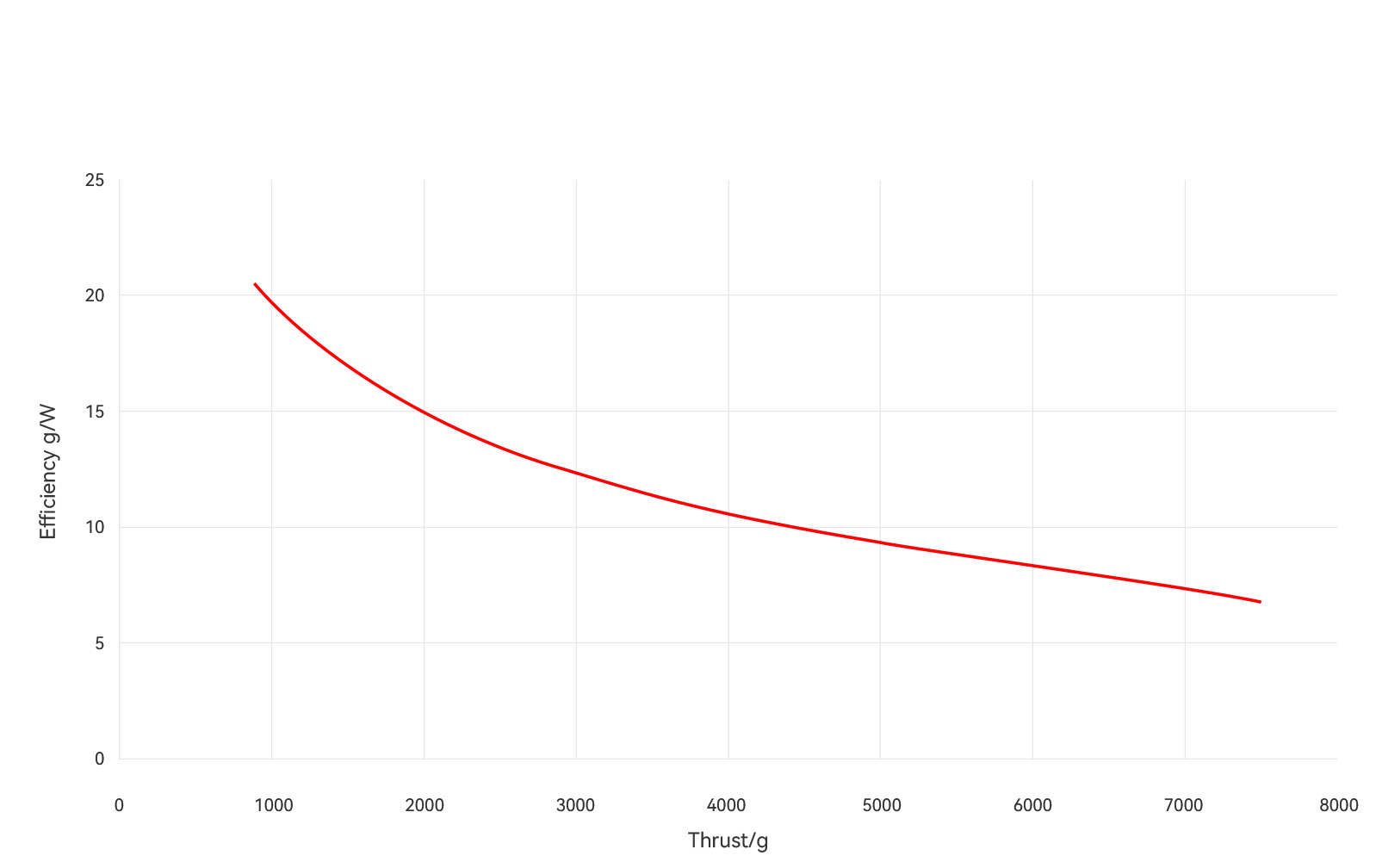

The validated I7 configuration delivers 13.23 g/W at 2.5 kg thrust and 50 percent throttle and has supported more than 120 minutes of flight time in an endurance UAV configuration
Tool Free Quick Release I30 Propeller
The I30 quick release locking structure supports fast installation removal transportation and field maintenance helping reduce preparation time for repeated professional missions

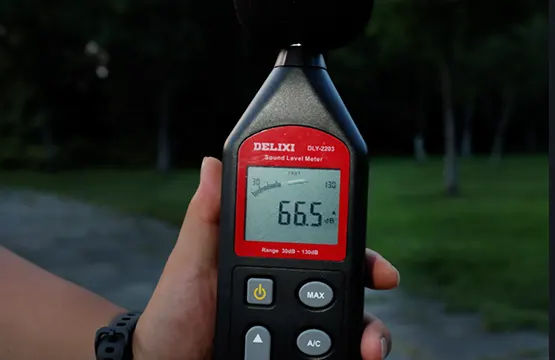

Lower Acoustic Signature for Sensitive Missions
The matched I30 propeller has been measured at 65–67 dB from 5 meters helping reduce acoustic disturbance during inspection monitoring and public safety operations near people or sensitive environments
Long Life Protection and Wide Temperature Reliability
Core components are developed around a 10,000 hour service life target while IP46 protection and a recommended ambient temperature range from −30°C to 65°C support frequent inspection mapping and monitoring missions across changing outdoor conditions
Where I7 Fits Best
Designed for 10–14 kg quadcopter UAVs that need long endurance propulsion stable payload operation and efficient deployment across repeated professional missions
Long Endurance Mapping and Surveying
Supports photogrammetry LiDAR and multispectral payload platforms that need longer flight lines fewer battery changes and more productive area coverage
Linear Infrastructure Inspection
Fits powerline pipeline railway road and corridor inspection missions where endurance reduces route splitting and repeated takeoff and landing cycles
Persistent Public Safety Overwatch
Supports camera thermal and communication payloads for extended perimeter monitoring event support incident assessment and temporary overwatch
