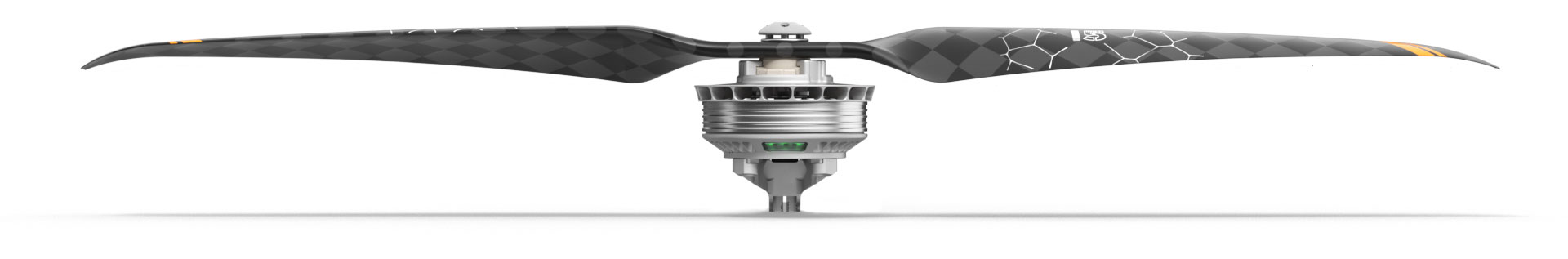

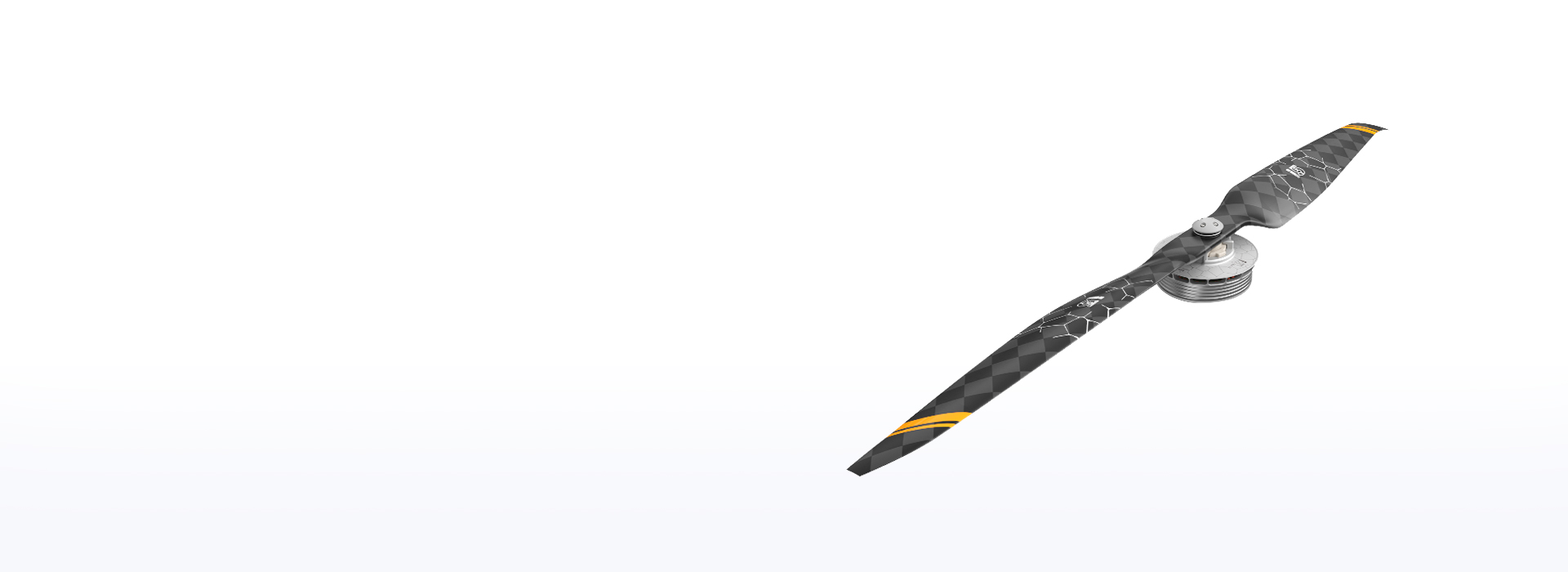

IPET I5
Integrated I5 motor 8S FOC 30A ESC and matched I24 propeller system for 4–6 kg quadcopter and 6–9 kg hexacopter UAVs requiring compact long endurance propulsion efficient hover performance and streamlined platform integration

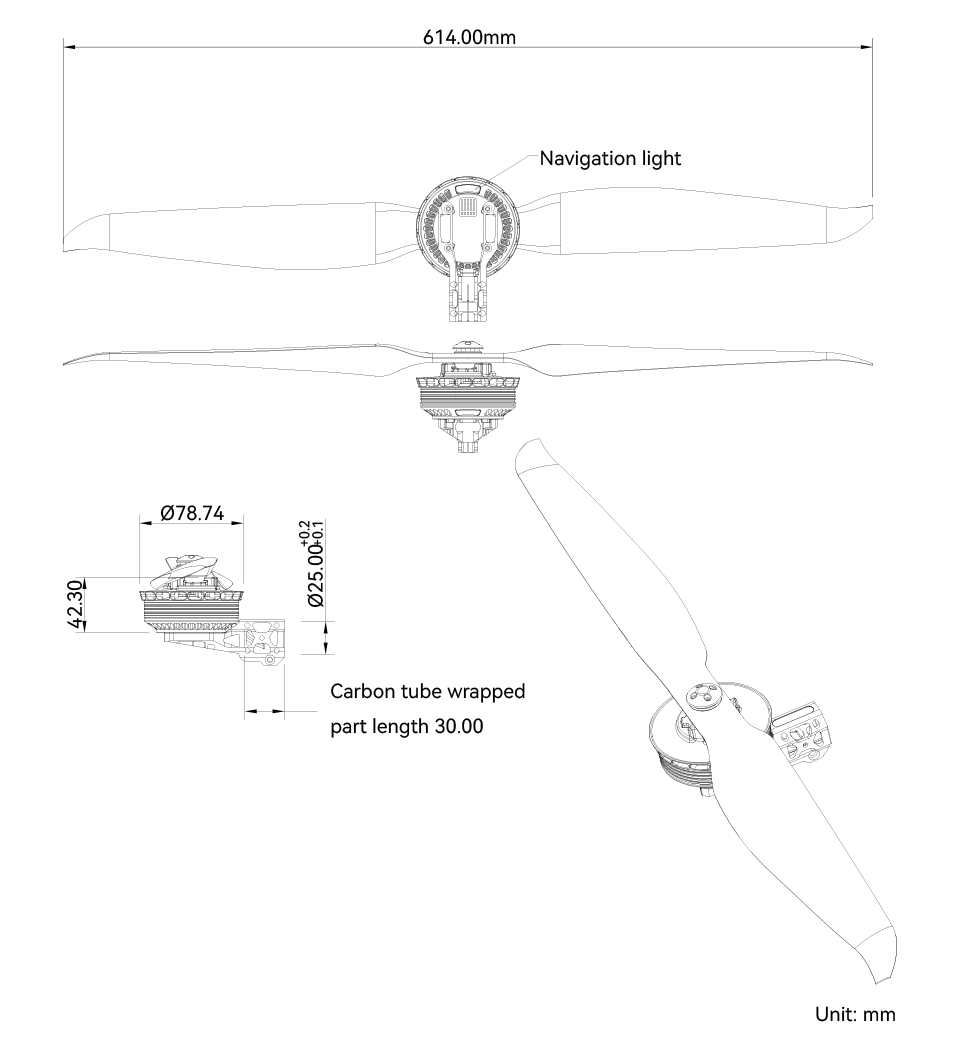

Engineering Fit Check
Use these core parameters for initial airframe compatibility review Final sizing should also consider altitude ambient temperature payload distribution mission duty cycle propeller clearance and the thrust reserve required by the flight control strategy
Integrated by Design Validated as a System
Motor ESC and matched propeller are engineered as one propulsion architecture to reduce integration work improve system consistency and provide a validated starting point for UAV platform development
Motor and ESC Integration
A compact integrated architecture reduces external wiring connector count and installation complexity while supporting more consistent electrical control and thermal behavior
Matched Propeller Setup
Propeller sizing is selected around the motor and ESC operating range to balance thrust efficiency current draw and thermal load at system level
Faster Platform Integration
A defined propulsion configuration reduces component sourcing compatibility testing and repeated tuning during prototype development

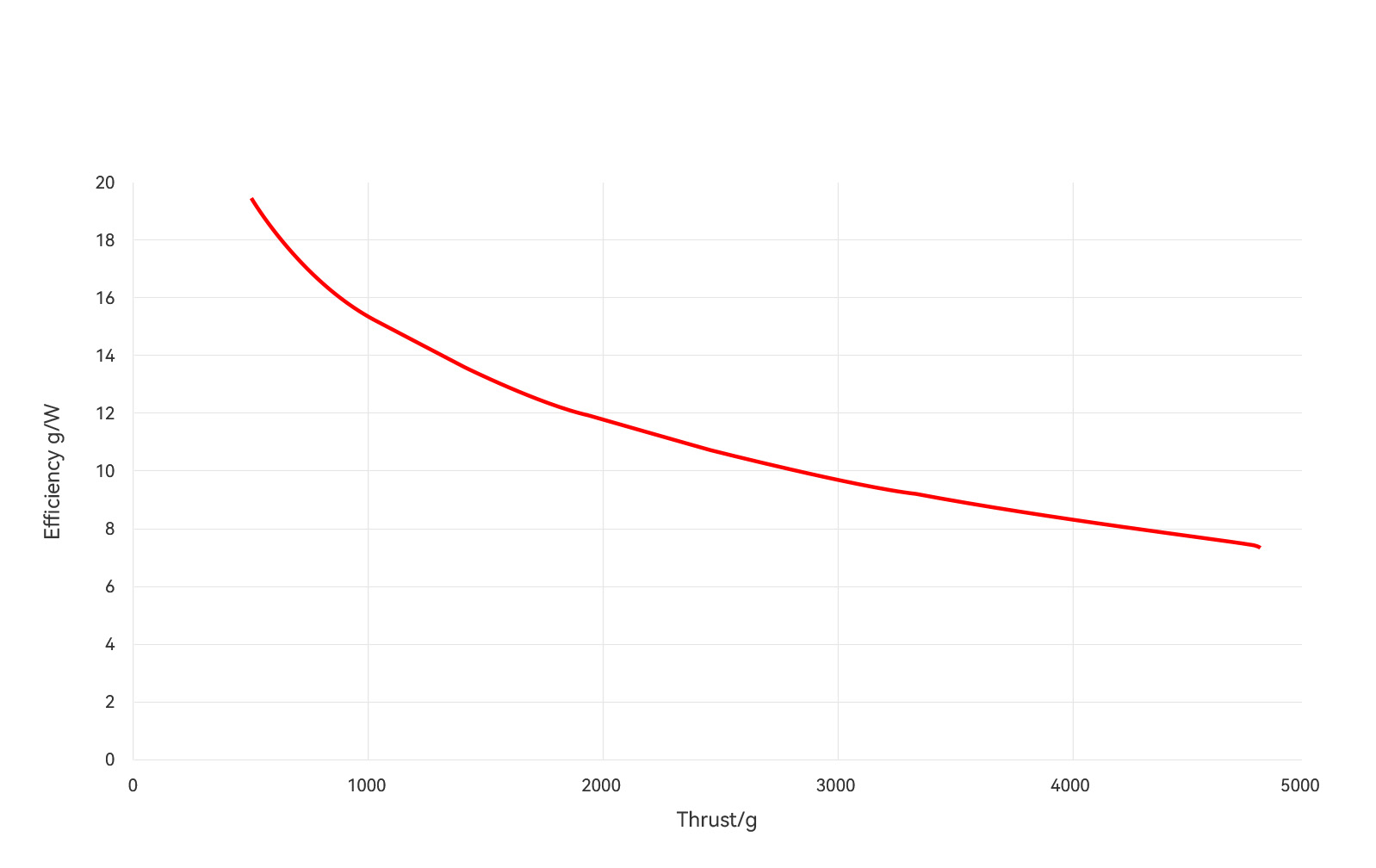

System Level Performance Data
Thrust efficiency current RPM and temperature are evaluated as a complete propulsion system to support airframe selection and validation
Engineered for Efficient Flight and Fast Turnaround
Designed for compact professional UAVs that need efficient hover performance rapid field deployment long service life and stable thermal behavior across repeated missions
High Efficiency at Practical Hover Load

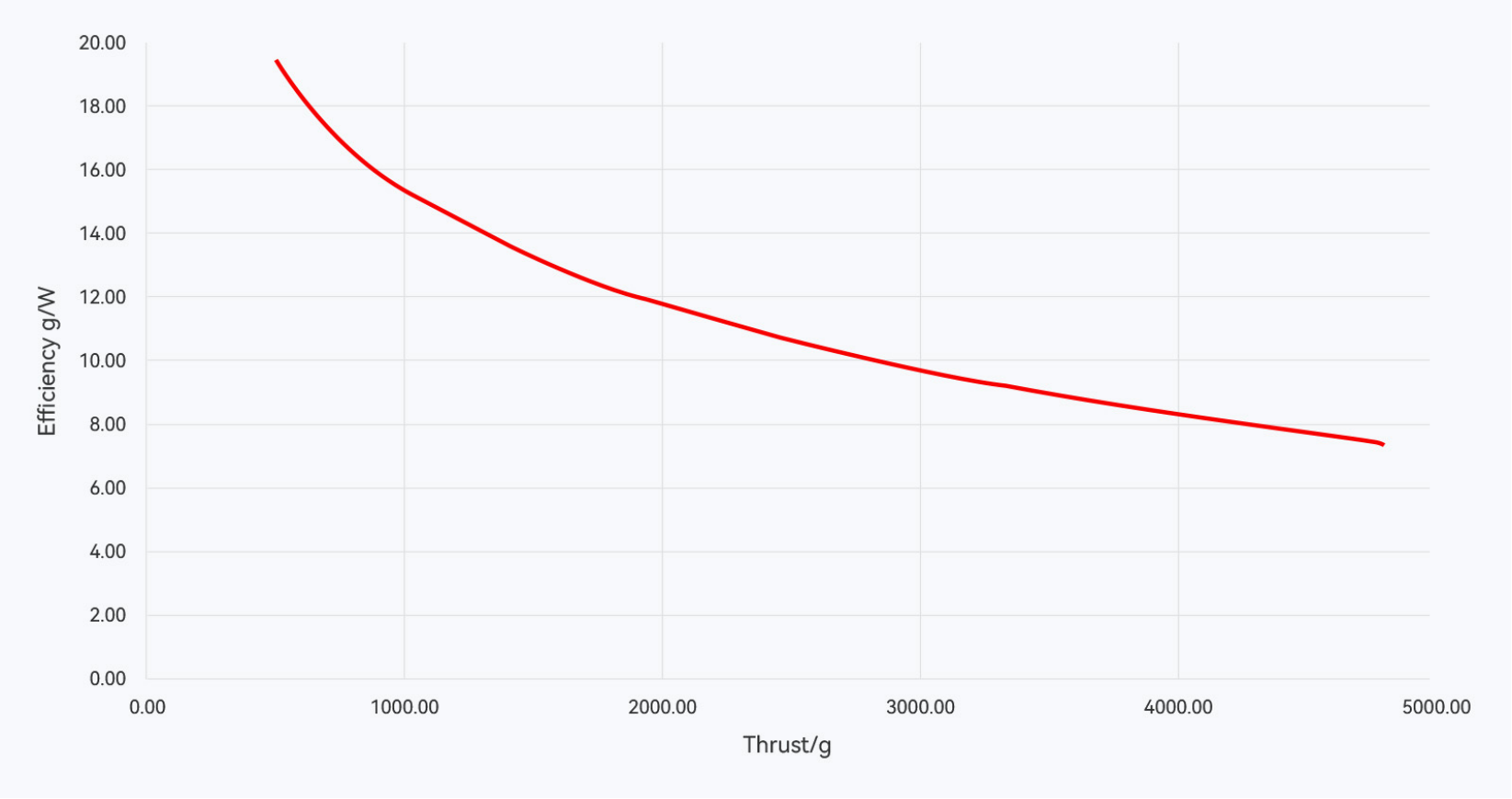

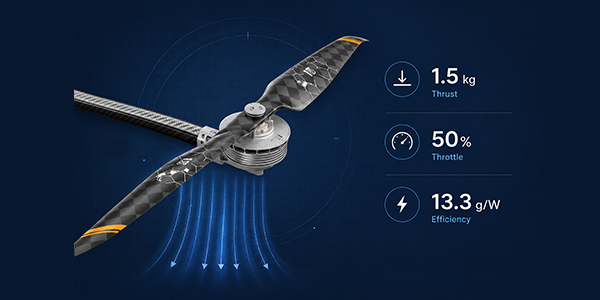

The validated I5 configuration delivers 13.3 g/W at 1.5 kg thrust and 50 percent throttle helping reduce energy demand during the operating range most relevant to compact endurance UAVs
Tool Free Quick Release I24 Propeller
The I24 quick release structure supports fast installation removal transport and field maintenance helping shorten preparation and turnaround time between missions
Long Life Protection and Wide Temperature Reliability
Core components are developed around a 10,000 hour service life target while IP46 protection and a recommended ambient temperature range from −30°C to 65°C support frequent outdoor missions involving dust moisture cold starts and high daytime temperatures
Stable Thermal Performance Across Repeated Sorties
The integrated motor and ESC architecture supports controlled heat transfer and stable propulsion performance during repeated duty cycles helping reduce thermal variation across back to back missions
Where I5 Fits Best
Designed for 4–6 kg quadcopter and 6–9 kg hexacopter UAVs that need compact long endurance propulsion stable payload operation and efficient field deployment
Compact Mapping and Surveying
Supports photogrammetry lightweight LiDAR and survey payload platforms that need longer flight time from a compact multirotor airframe

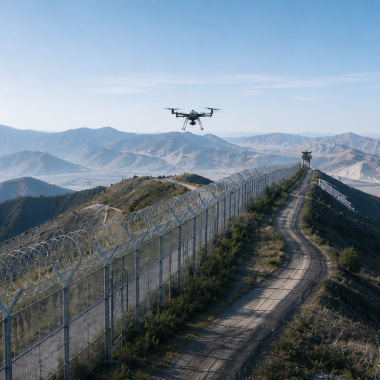

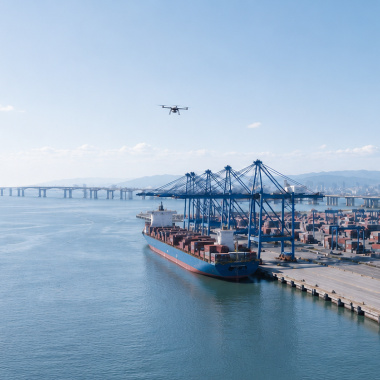

Site and Perimeter Inspection
Fits industrial sites campuses facilities and perimeter inspection missions where efficient hover time helps reduce battery swap interruptions
Public Safety and Rapid Response
Supports compact UAVs carrying camera thermal or communication payloads for rapid search incident assessment and temporary overwatch tasks
