IV7224 RECOMMENDATIONS

FOC INTEGRATED FIXED-WING CRUISE POWER SYSTEM

IPET INTEGRATION SYSTEM

IV7224

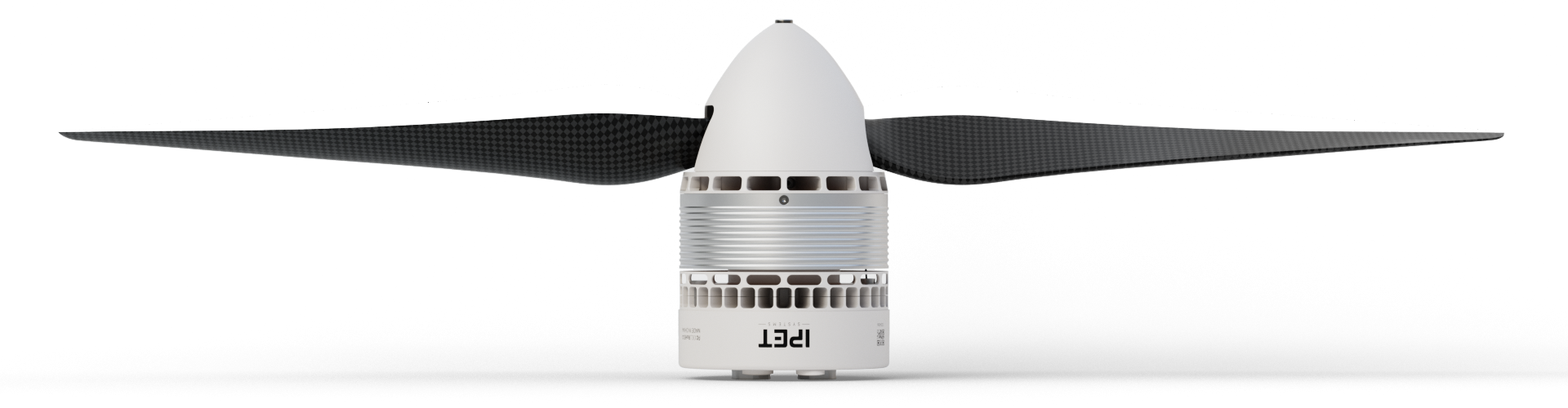

Thrust

Pull

IV7224 KV160

MOTOR

14S FOC IV150A

ESC

24*10/22*10

PROPELLER

12S/14S

VOLTAGE

28~32kg

MTOW

IV7224 KV190

MOTOR

14S FOC IV150A

ESC

22*10

PROPELLER

12S

VOLTAGE

28~32kg

MTOW

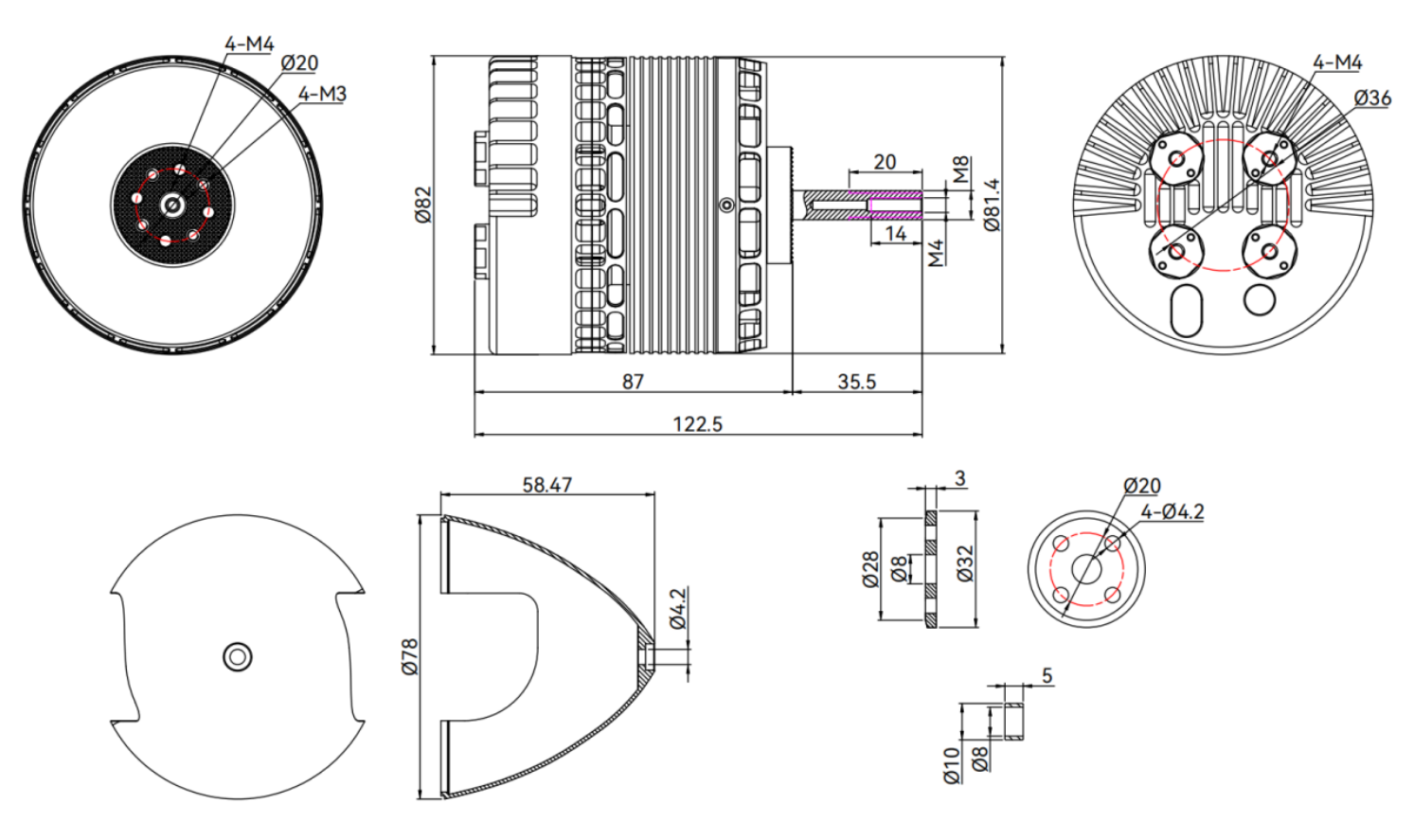

Technical Drawing

System Specs

Model No.	IV7224 KV160	IV7224 KV190
Setup	IV7224 Motor+14S FOC IV150A ESC	IV7224 Motor+14S FOC IV150A ESC
Propeller	2410、2412、22*10	22*10
Voltage	12~14S (LiPo)	12S (LiPo)
Max. Power	6200W	5300W
Power Cables	Silicone wires-red/black-10AWG-1800mm	Silicone wires-red/black-10AWG-1800mm
Signal wires	Shielded wire - black-OD4.2-5C-1200mm -JP-3P*2-black blank white-green yellow grey	Shielded wire - black-OD4.2-5C-1200mm -JP-3P*2-black blank white-green yellow grey
Weight	1300g±2%	1300g±2%
IP	IP35	IP35
Recommended ambient temperature	-30℃～50℃	-30℃～50℃

Motor Specs

KV	160	190
Stator size	72*24mm	72*24mm

ESC Specs

Throttle Pos. Range	1040~1940us (Fixed)
Protocol	DRONE CAN、 UAV CAN
Control Method	PWM/CAN
Throttle Refresh Rate	50-500Hz
Max. voltage	60V
Peak Output Current(last for 3s)	150A(Open environment with temperature ≤60℃)
BEC	No
Throttle Response Speed	300ms

Test Data

Type	Throttle (%)	Voltage (V)	Current (A)	Thrust (g)	Motor efficiency (%)	Overall efficiency (g/W)	Operating temperature (℃)
IV7224 KV160 + 14S FOC IV150A + 24*10	30	47.92	3.01	1489	66.2	10.3	84 (Ambient temperature:25)
	35	47.89	4.47	2059	71.7	9.6
	40	47.82	6.39	2758	78.7	9.0
	45	47.75	8.86	3550	79.8	8.4
	50	47.67	11.96	4437	81.8	7.8
	55	47.56	15.68	5398	82.8	7.2
	60	47.42	20.38	6462	83.1	6.7
	65	47.28	25.49	7596	85.6	6.3
	70	47.1	31.66	8790	85.8	5.9
	75	46.89	38.93	10102	86.0	5.5
	80	46.66	47.34	11466	83.3	5.2
	85	46.38	57.22	12925	82.7	4.9
	90	46.04	68.80	14521	82.5	4.6
	95	45.63	82.77	16222	82.0	4.3
	100	45.15	99.24	17987	82.2	4.0
IV7224 KV160 + 14S FOC IV150A + 24*12	30	47.94	3.34	1624	69.5	10.1	86 (Ambient temperature:25)
	35	47.89	5.07	2302	74.0	9.5
	40	47.82	7.32	3064	81.0	8.8
	45	47.73	10.22	3949	80.9	8.1
	50	47.63	13.71	4910	83.0	7.5
	55	47.51	18.04	5961	84.2	7.0
	60	47.36	23.25	7090	85.6	6.4
	65	47.19	29.43	8333	85.3	6.0
	70	47	36.60	9646	86.0	5.6
	75	46.74	44.91	11035	85.4	5.3
	80	46.47	54.56	12532	83.7	4.9
	85	46.14	65.88	14071	83.6	4.6
	90	45.76	79.15	15707	83.3	4.3
	95	45.27	95.65	17531	81.9	4.0
	100	45.11	101.31	18072	81.1	4.0
IV7224 KV160 + 14S FOC IV150A + 22*10	30	59.81	3.188	1658	63.3	8.7	91 (Ambient temperature:25)
	35	59.76	4.65	2274	71.5	8.2
	40	59.71	6.67	3028	75.9	7.6
	45	59.63	9.22	3888	78.6	7.1
	50	59.55	12.43	4870	80.5	6.6
	55	59.43	16.35	5957	82.0	6.1
	60	59.29	21.13	7161	82.9	5.7
	65	59.11	26.78	8456	83.3	5.3
	70	58.93	33.5	9856	84.3	5.0
	75	58.71	41.55	11385	84.3	4.7
	80	58.46	50.97	13002	84.7	4.4
	85	58.11	62.22	14741	85.2	4.1
	90	57.71	75.90	16579	84.5	3.8
	95	57.19	94.05	17776	83.4	3.3
	100	56.68	110.94	18607	81.9	3.0
IV7224 KV190 + 14S FOC IV150A + 22*10	30	48.08	3.76	1616	74.0	8.9	91 (Ambient temperature:25)
	35	48.03	5.44	2196	78.8	8.4
	40	47.97	7.73	2893	81.1	7.8
	45	47.9	10.7	3705	84.1	7.2
	50	47.78	14.29	4605	85.2	6.7
	55	47.65	18.72	5601	85.9	6.3
	60	47.52	24.20	6693	86.0	5.8
	65	47.33	30.41	7862	86.0	5.5
	70	47.13	37.83	9118	85.8	5.1
	75	46.88	46.50	10434	85.3	4.8
	80	46.6	56.47	11830	84.8	4.5
	85	46.26	68.23	13313	84.0	4.2
	90	45.89	82.02	14865	82.9	3.9
	95	45.41	97.89	16370	81.9	3.7
	100	44.78	119.23	17756	80.9	3.3
Note: Motor temperature is the motor surface temperature at 100% throttle running 3mins. (Data above based on IPET SYSTEMS benchtest are for reference only. Final interpretation rights reserved by IPET SYSTEMS)
