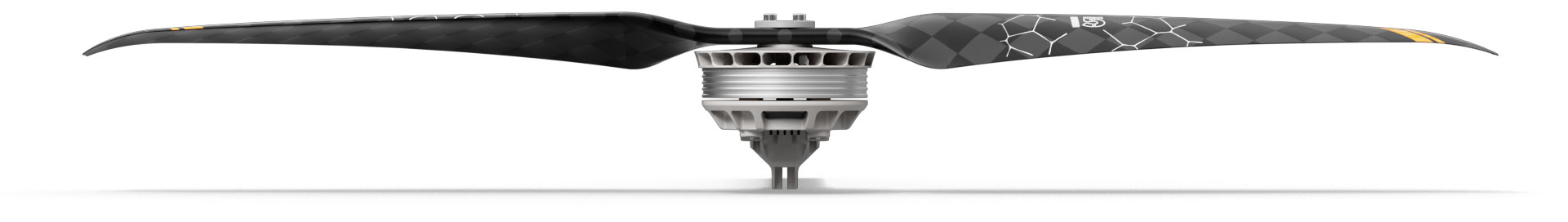

I5 Integrated Electric Power System

The preferred solution for 4~6kg multirotor drones

MOTOR

8S FOC 30A

ESC

I24

PROPELLER

I5 Recommendations

Take-off weight

4~6kg

Quadcopter

Take-off weight

7~9kg

Hexacopter

Technical Drawing

System Specs

Model No.	I5 KV135
Setup	I5 (Motor)+8S FOC 30A (ESC)+I24 (Prop)
Recommended battery	6-8S (LiPo)
Rated thrust	1.2~1.5kg
Efficiency at rated thrust	13.3g/W (1.5kg)
Max. thrust	4.8kg
Tube size	25mm
Wire length	500±5mm
Weight	320±2%g (Incl. wires+prop)
IP	IP46
Recommended ambient temperature	-30～50℃

Motor Specs

KV	135

ESC Specs

Throttle range	1050~1950us (Fixed)
Protocol	DRONE CAN, UAV CAN
Control method	PWM/CAN
Max. voltage	36V
Peak current(for a short time)	30A(Open environment and temperature≤60℃)
BEC	NO

Prop Specs

Model No.	I24 (Integrated carbon fibre propeller)
Length	24 Inch (614mm)

Test Data

Type	Voltage (V)	Throttle (%)	Current (A)	Thrust (g)	Motor efficiency (%)	Overall efficiency (g/W)	Operating temperature (℃)
I5 KV135 + 8S FOC 30A + I24	33.03	30%	0.79	506	73.9	19.4	93 (Ambient temperature: 30)
	33.01	35%	1.23	704	75.2	17.3
	32.99	40%	1.81	938	79.1	15.7
	32.97	45%	2.52	1206	80.4	14.5
	32.94	50%	3.43	1499	80.6	13.3
	32.92	55%	4.43	1797	81.1	12.3
	32.88	60%	5.69	2143	80.5	11.5
	32.85	65%	7.12	2492	80.7	10.7
	32.8	70%	8.69	2849	80.5	10
	32.77	75%	10.43	3220	80.1	9.4
	32.71	80%	12.32	3583	79.4	8.9
	32.66	85%	14.41	3952	78.4	8.4
	32.59	90%	16.86	4364	77.9	7.9
	32.52	95%	19.56	4761	76.5	7.5
	32.53	100%	19.89	4800	76.6	7.4
Note: Motor temperature is the motor surface temperature at 80% throttle running 3mins. (Data above based on IPET SYSTEMS benchtest are for reference only. Final interpretation rights reserved by IPET SYSTEMS.)

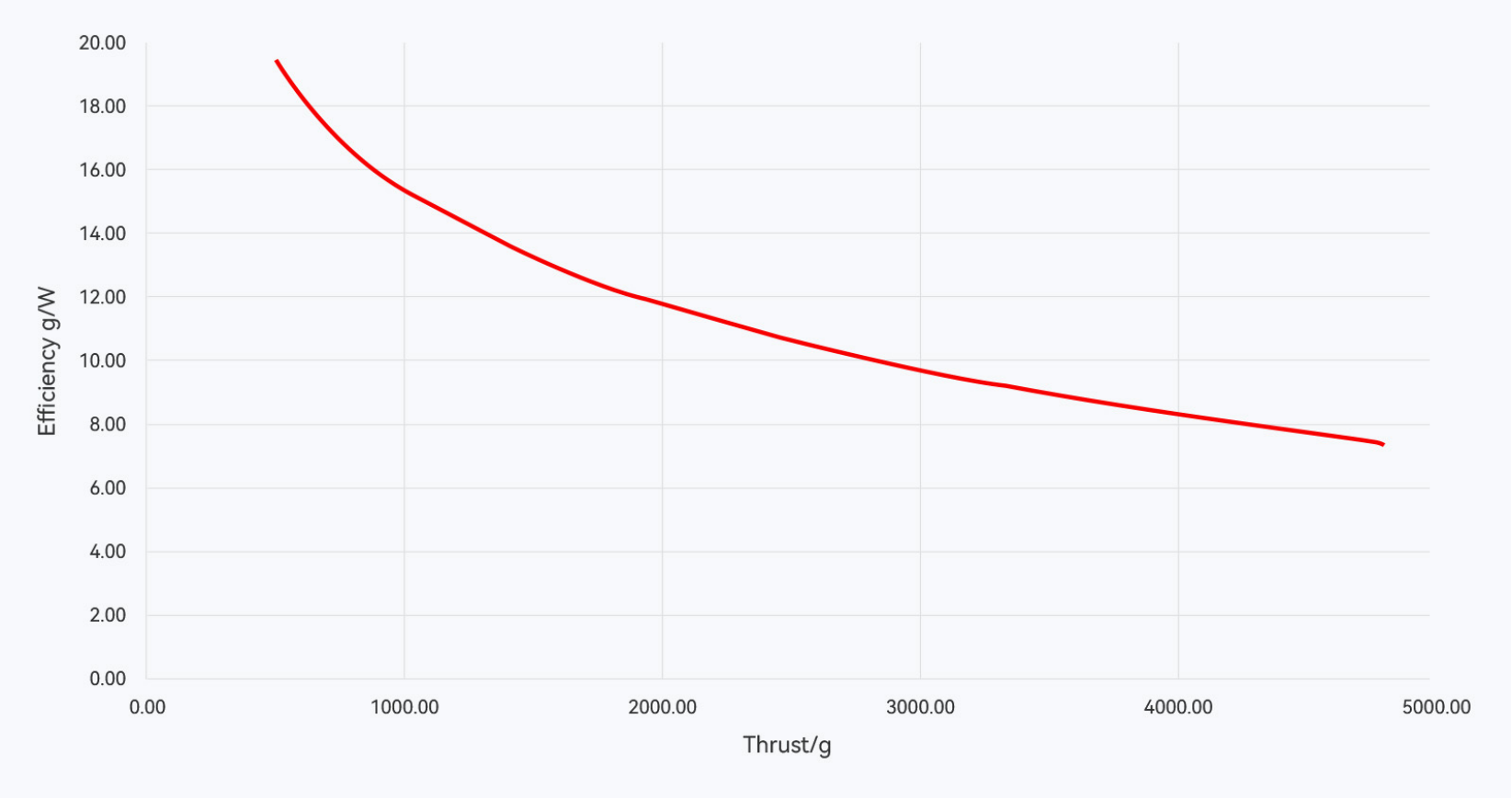

Thrust-Efficiency Curve

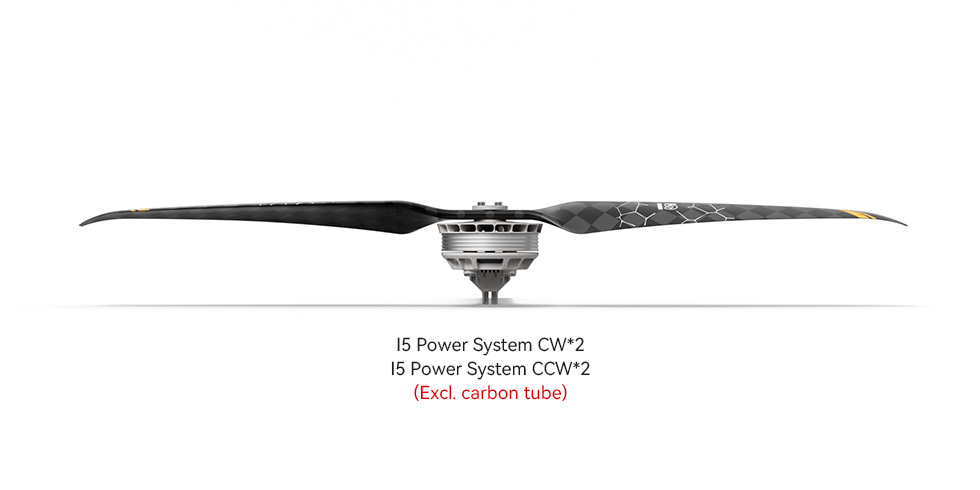

Contents
